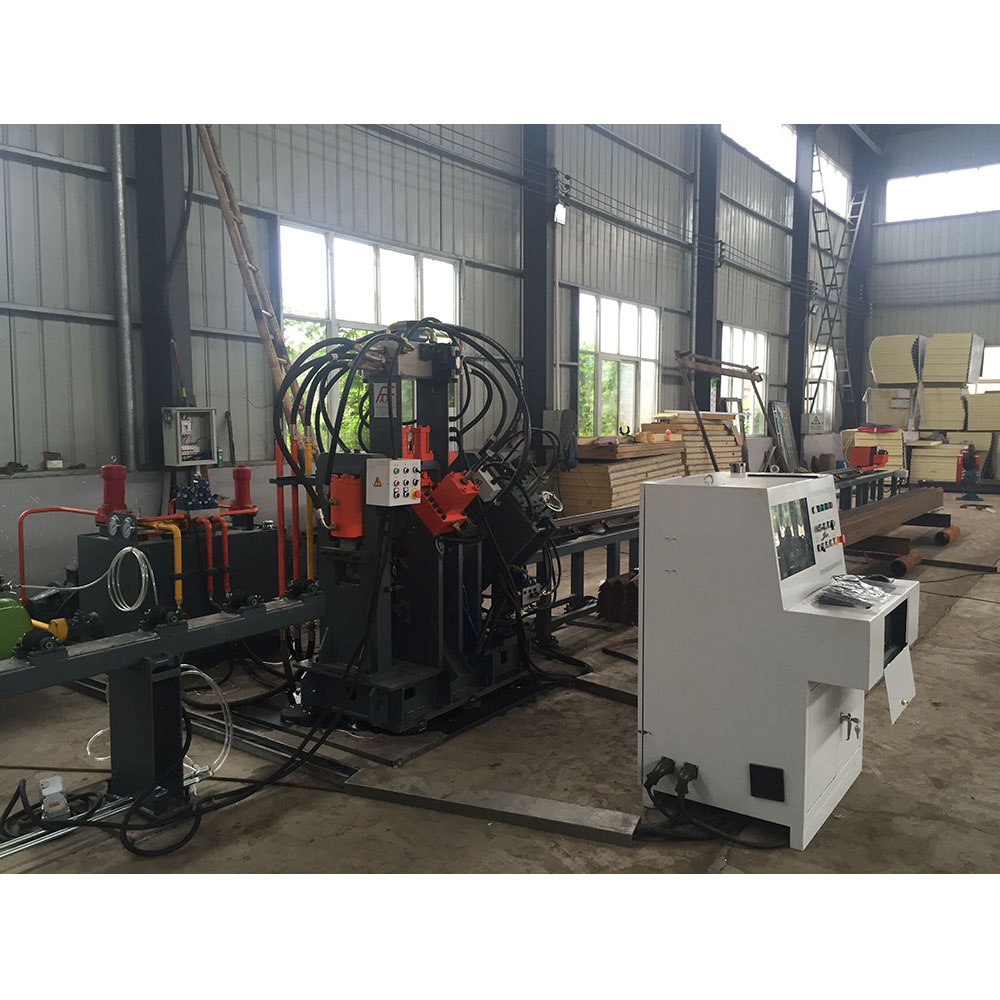

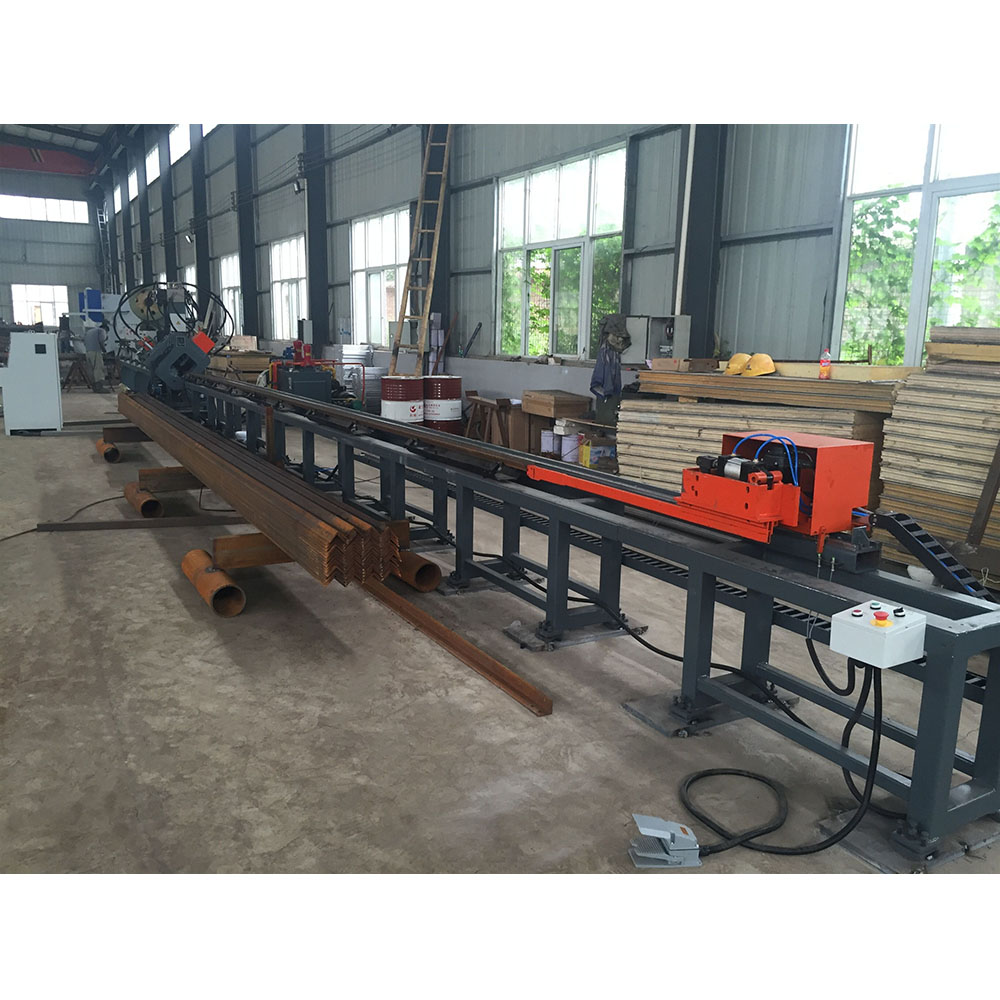

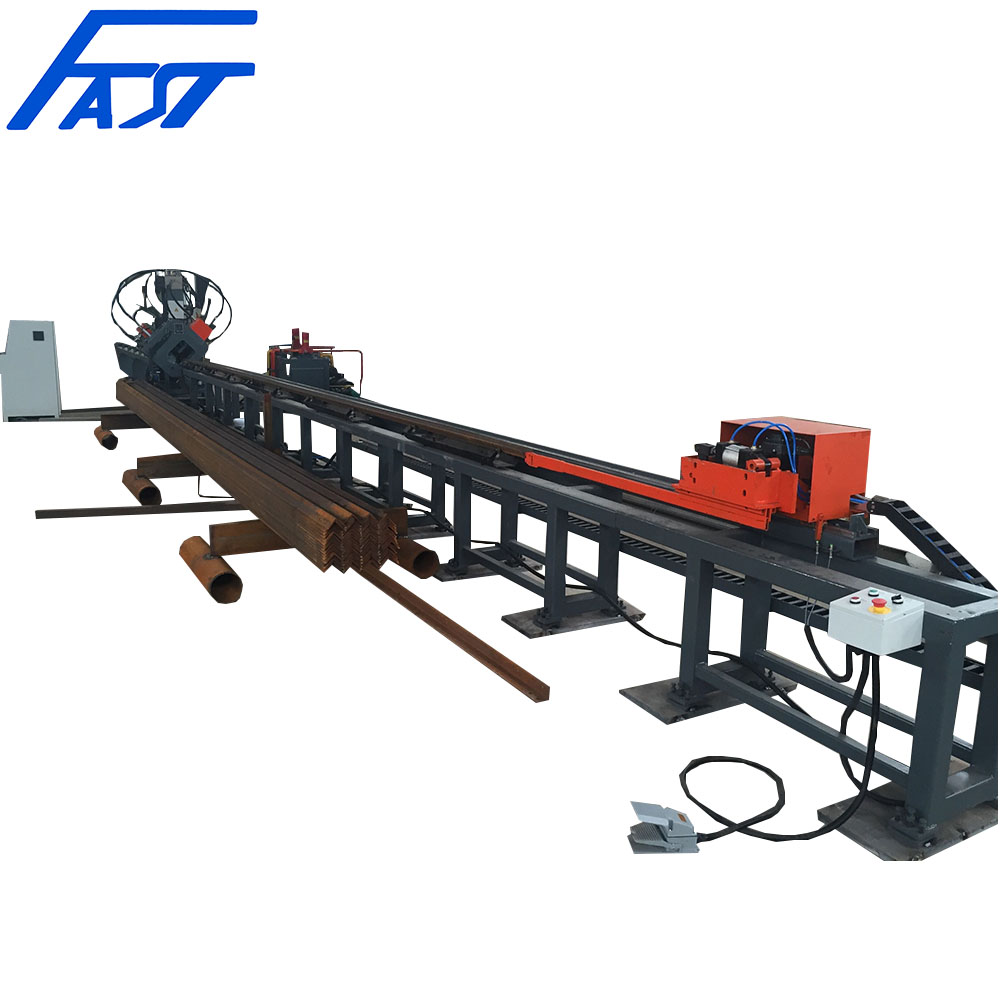

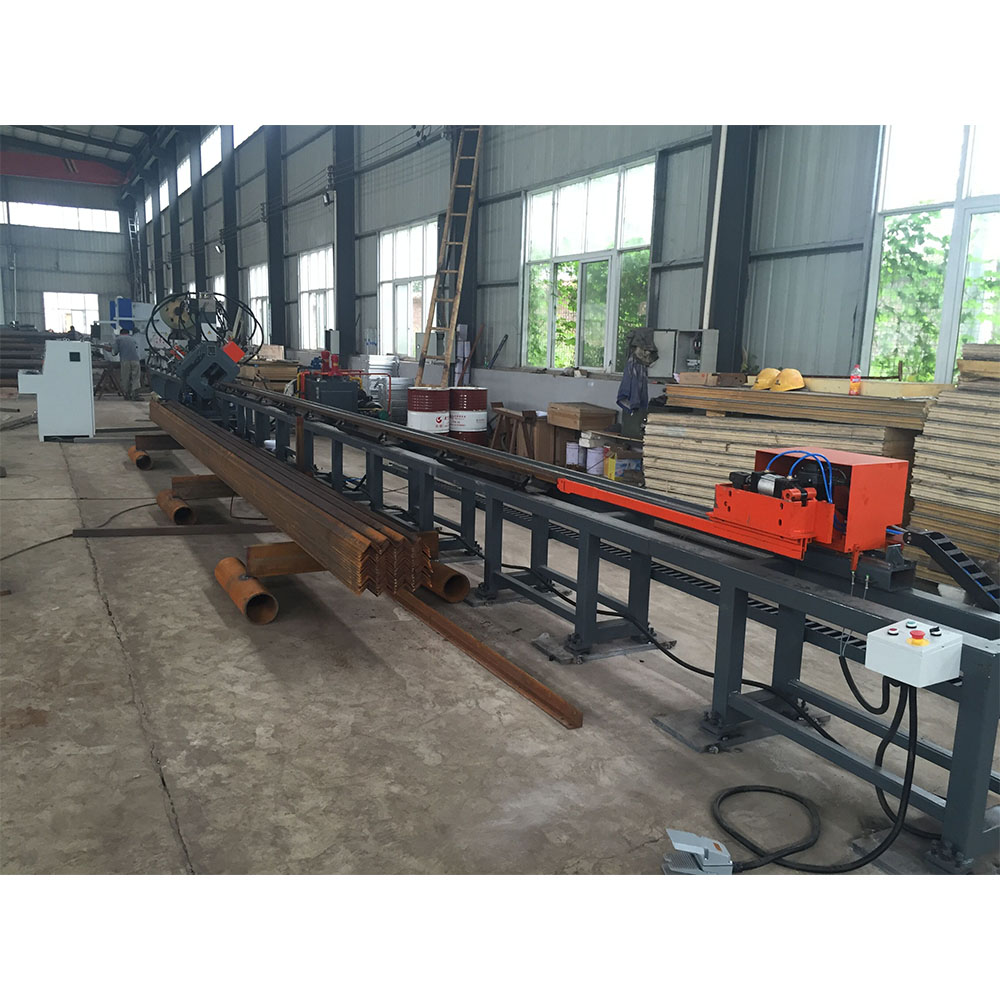

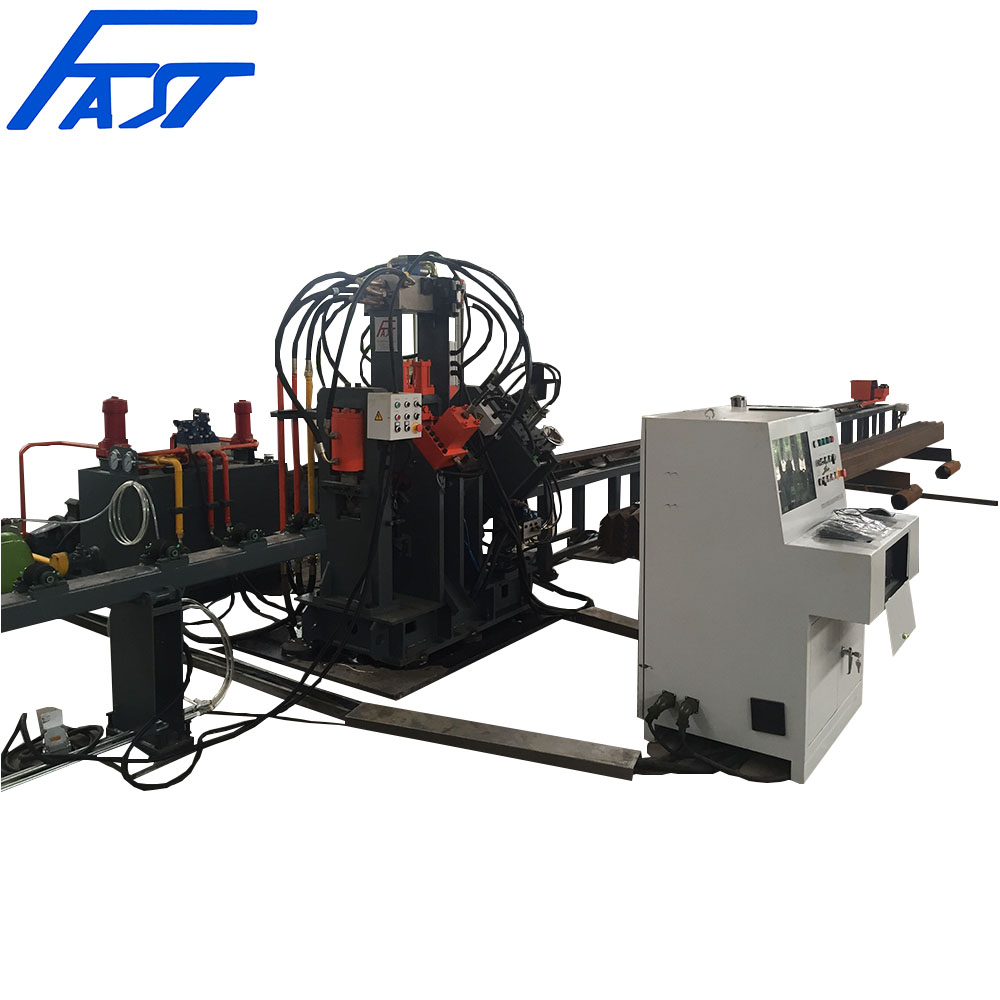

JX0707 CNC Punching， Marking & Shearing Line For Angles
APPLICABLE INDUSTRY
This machine is the automatic special production line used for angle steel punching, marking, and shearing mainly in the field of angle steel tower industry, electric power fittings, structure storage facilities, and steel structure construction industries, etc.
FEATURES
(1) Integrated machine with mechanical，electrical and hydraulic elements;
(2) Computer control, three-axis servo motor drive;
(3) Infinite gauge lines and no limits of the holes row；
(4) Imported electronic，hydraulic and pneumatic components;
(5) Provide G code software programs that can directly convert CAD graphics into machine executable;
(6) Various input methods, keyboard and mouse input, USB interface input, network interface input, can also directly call the data generated by lofting software;
(7) Graphical display of machining parts;
(8) Self-diagnosis function .
COMPOSITION
Material platform
Cross feeding conveyor
CNC feeding trolley
CNC conveyor
CNC marking unit
CNC punching unit
Retainer（supporting material）
CNC cutting unit
Outfeeding conveyor
Hydraulic station
Controlling system
TECHNICAL DATA
Model
JX0603
JX1010
JX1010-2
JX1010-3
Function
Punching， Marking，Shearing
Angle Size (mm)
35*35*3~63*63*6
40*40*3~100*100*10
40*40*3~100*100*10
40*40*3~100*100*10
Max. Punching (D*T) (mm)
Φ26x6
Φ26x10
Round hole Φ26x10
Slot hole 22x50
Punching Force (kN)
200
1200
1200
1200
Marking Force (kN)
700
1000
1000
1000
Shearing Force (kN)
450
2000
4000
4000
Max. Length of blank（m）
9
10 OR 12
10 OR 12
10 OR 12
Max.length of finished （m）
5
8
8
8
Qty. Of punching head on each side （pcs)
1
2
3
3
NO. of Character Group (Piece)
4
4
4
4
Character Size (mm)
14*10*20
Shearing modes
Single blade
CNC Axes (Piece)
3
Feeding Speed of Angle (m/mm)
80
Programming Mode
Lofting software or instruction programming
Overall Dimension (m)
About 17*6*1.6
About 22*7*2.4
About
22*7*2.4
About
22*7*2.4
Net Weight (kg)
About 7000
About 13000
About 14000
About 14500
FAQ
· Are you a Manufacturer or a Trading company？
Manufacturer + trading company （integration），focusing on CNC machines for 18 years. Integration with Design，Machining and Assembly.
Exporting to Russia，USA，Australia，Vietnam，Brazil，Ethiopia，Tunisia，Bulgaria，India，Indonesia，Jordan，Pakistan，etc
· Do you have stock product ready to delivery？
In order to satisfy with customer for fast delivery, we have certain amount of machines in stock.
· After an order is placed，when to delivery？
General 30 working days. It depends on specific items and item quantities.
Please check with sale manager for exact delivery time.
· What is the Warranty with After-sale Services？
12 months warranty after delivery. Engineers will provide training program for operation and trouble shouting during installation. They visit customers regularly for service. All questions will be answered within 3 hours and 90% problem will be solved within 24 hours.
After the warranty, the professional after-sale service team will provide perfect technical support and help customer solve problems encountered.
· What about the product quality？
Each machine must be carried out quality examination and test when shipping and delivery goods.
